DIGITAL ELECTRICITY METER TO CONNECT TO A SMART METER GATEWAY
- Product options according to FNN specifications:
- With activated GRID values (G): Individual currents L1, L2, L3; individual powers L1, L2, L3; grid frequency; phase angle
- Modern metering device according to MsbG (German law) for connection to an SMGW
- Double tariff (DT)
- 100A version
- 3-phase (3) basic meter in accordance with FNN standards for smart metering as:
- Bidirectional meter (+A and -A)
- Three-phase and alternating current metering
- Class A
- 3-point design with a direct-measuring (d) shunt measuring unit
- Display of historical values (24 months)
- Recording of monthly pre-values and event values (meter readings)
- Recording of historical daily values (consumption)
- Logbook
STANDARD VARIANT
Composite type code: 3.P2d 3 +- A100 DT G
METER VARIANTS
| Type of construction | Meter type | Generation | Measurement | Phases | Measurement type | Max. current | Tarif | Options |
| 3. | P | 2 | d | 3 | +- A + A | 100 | DT | G |
DIGITAL ELECTRICITY METER
TO CONNECT TO A SMART METER GATEWAY
The Siconia® SMARTY BZ-PLUS from Sagemcom Dr. Neuhaus GmbH is a digital electricity meter for legally compliant smart metering in Germany. The digital three-phase meter is also suitable for use in smart metering systems (iMSys).
The Siconia® SMARTY BZ-PLUS is available as a one-directional meter with backstop and bidirectional meter. The integrated real-time clock and calendar allow the use of tariff tables without connection to an external switching device. Via the integrated D0 interface with IEC 62056-21 ("IEC1107") protocol, the meter can be both read and parameterised using additional software. The meter is thus optimally prepared for future requirements.
On delivery, the Siconia® SMARTY BZ-PLUS has activated GRID functions so that values relevant to grid operation, such as frequency or voltage, can be read out. On request, it can be supplied with the non-billing-relevant RLM functionality.
BENEFITS
- Alternative operation by push button
- Real time clock and calendar for tariff programs
- Readout and parameterization via D0 interface
(IEC 62056-21; "IEC1107") - FNN compliant LMN interface
- DIN-rail mounting according to FNN specifications for additional devices, e.g. SMGW, control box
- High resistance to magnetic influence (Shunt measuring unit)
- Readout possible in de-energized state
- S0 pulse outputs (+A / -A)
- Approvedaccordingto EN62052-31

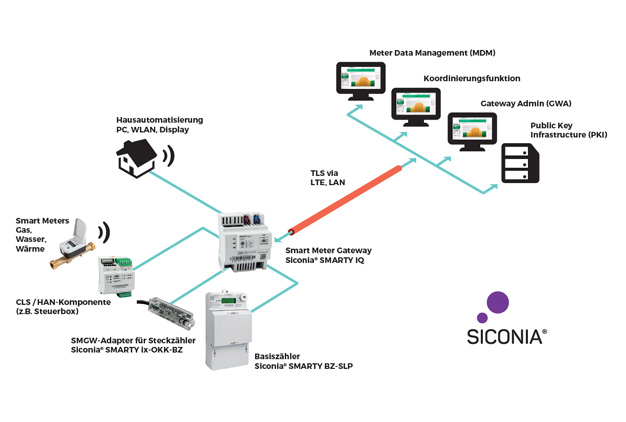

SYSTEM COMPONENTS
- Meters:
- Digital electricity meter:
Siconia® SMARTY BZ-PLUS - FNN basic houshold meter (eHZ) with SMARTY ix-OKK
- other meters with BAB adapter
(e.g. eHZ-EDL,...)
- Digital electricity meter:
- Smart meter gateway: Siconia® SMARTY IQ
- GWA software: Fröschl SMGWA
- MDM software: Fröschl MDM System
