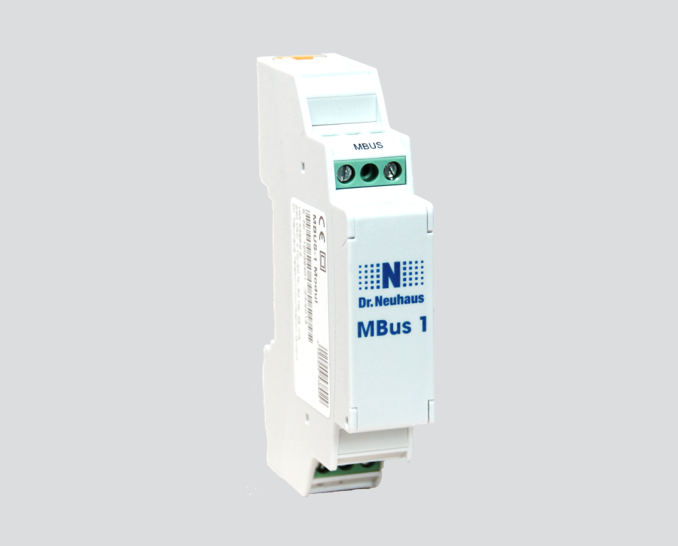

WIRED MBUS 1 MODULE FOR GMUC

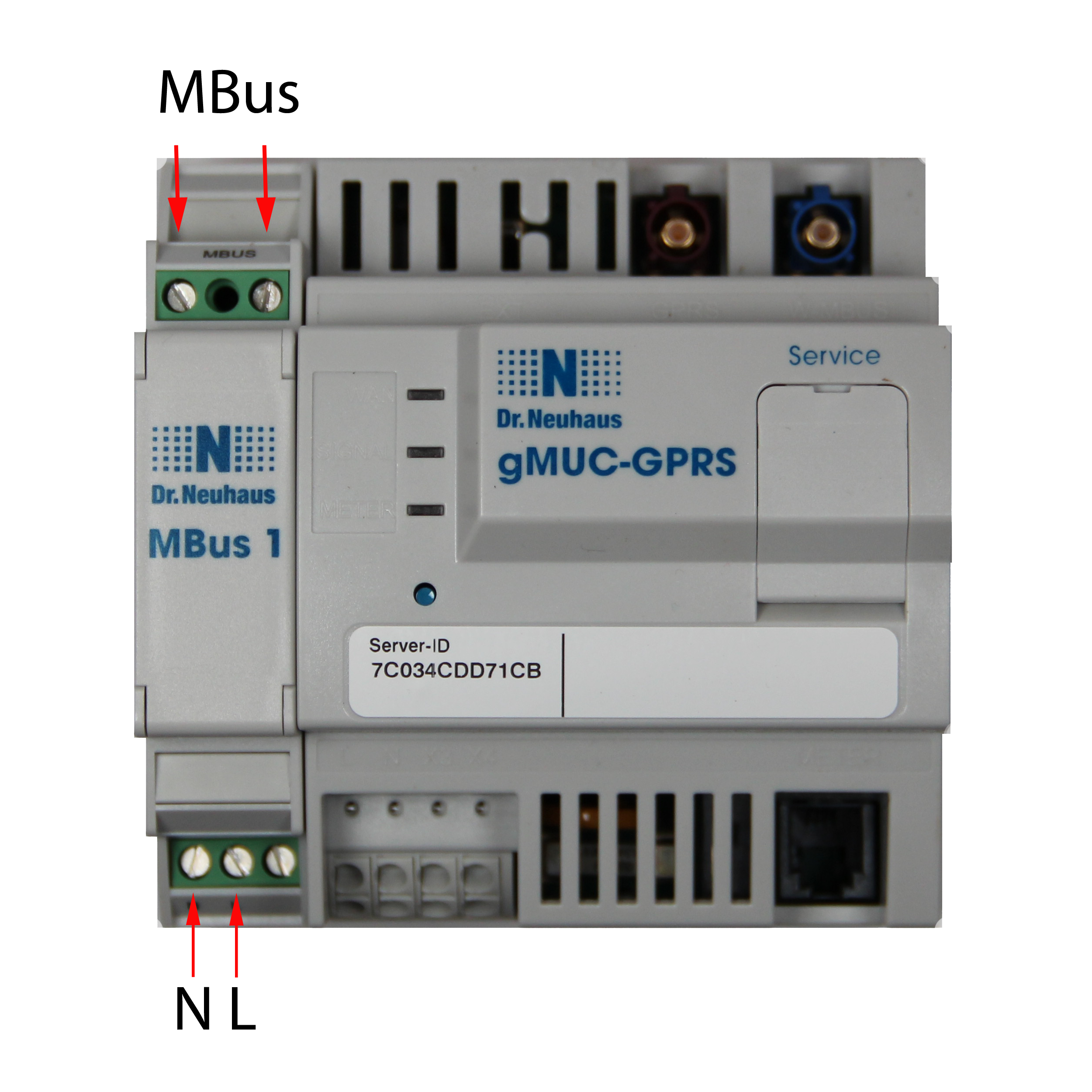

  • To connect wired MBus meter to the gMUC
Support

Technical data

METER INTERFACE

  • MBus mine Master according to EN 13757-2 up to 16 Mbus loads

INFRARED INTERFACE

  • Communication to gMUC via IrDA
  • Speed: 115.000 baud / 8N1

POWER SUPPLY

  • 230 VAC (-20/+10%)

ENVIRONMENTAL CONDITIONS

  • Operation: 0°C to +50°C
  • Humidity: 0-95 %, non-condensing

APPROVALS

  • Elektrical safety: EN 50428: 2010-02
  • EMV: EN 61000-6-3 / EN 61000-6-2

MECHANICS

  • Top hat rail mounting
  • Housing: plastic
  • Protection class: IP20
  • Dimensions: approx. 18 x 60 x 90 mm (L x W x H)
  • Weight: approx. 68 g

ARTICLE NUMBER

  • 538929 – Mbus 1 Modul
