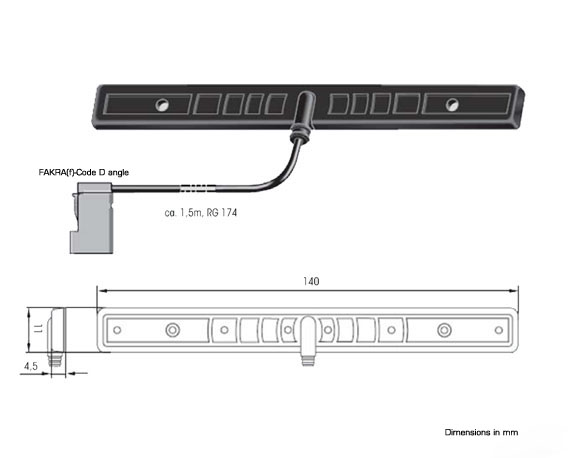

Adhesive Mount Indoor Antenna

RADIO NETWORKS

• GSM 900 | 1800 | 1900 | UMTS

FREQUENCY (IN MHZ)

• 890-960 | 1710-1880 | 1850-1990 | 1900-2200

VSWR

• ≤1,5:1 | ≤2:1 | ≤2:1 | ≤1,5:1

RETURN LOSS

• ≈15 dB | ≈10 dB | ≈10 dB | ≈15 dB

POLARIZATION

• vertical or horizontal

GAIN

• ≈ 2 dBi

IMPEDANCE

• 50 Ω

MAX. POWER

• 10 W

CONNECTOR

• Fakra(F)-code D

ORDER NUMBER

• 816652 (cable 1.5m, RG174)

BENEFITS

• Adhesive mount antenna for vertical installation
• Worldwide use in all cellular networks
• Suitable for indoor installation
• Fast mounting
• Favourable transmission properties
• Easy cable laying
• Mounting on non metallic surfaces only
• RF-Cable attached to the Antenna
• FAKRA - Plug: protected against polarity reversal through colored and mechanic codings

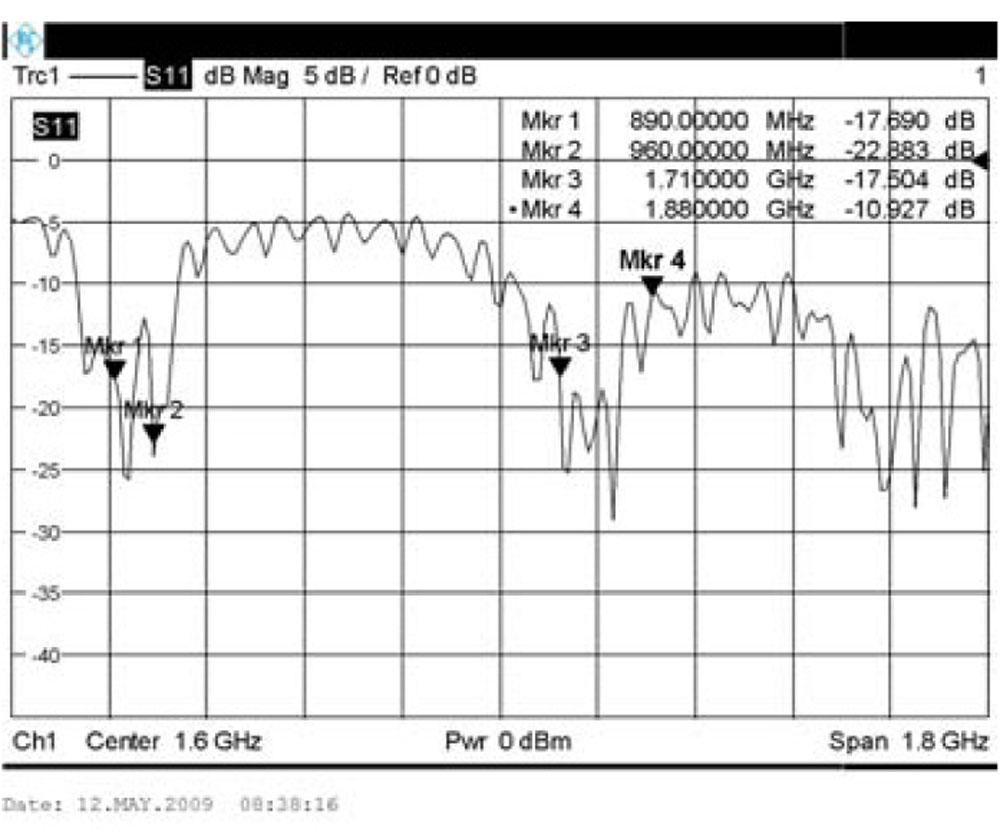

RETURN LOSS
