Wireless M-Bus Adhesive Mount Antenna

  • Suitable for indoor installation
Support

Technical data

FREQUENCIES

  • 868 MHz

SRD BAND

  • 868 MHz

POLARIZATION

  • vertical or horizontal

GAIN

  • 2 dBi typ.

VSWR

  • ≤1,5:1

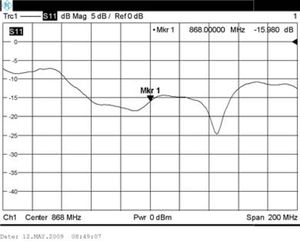

RETURN LOSS

  • ≈-15 dBi

MAX. POWER

  • 10 W

IMPEDANCE

  • 50 Ω

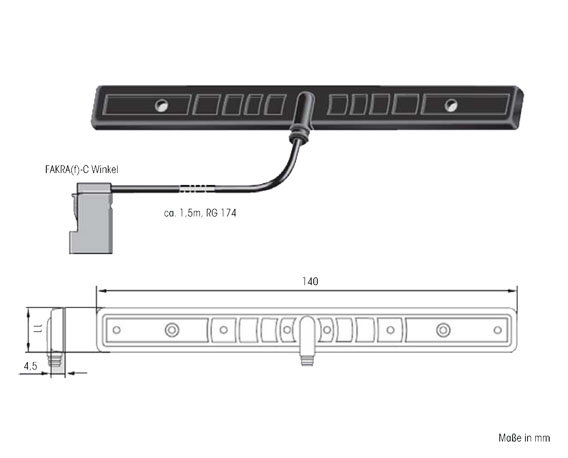

CABLE

  • RG 174 (outside diameter = 2,6mm; bending radius = 15mm)

CONNECTOR

  • FAKRA(f)-Code C, angle

ORDER NUMBER

  • 816669
