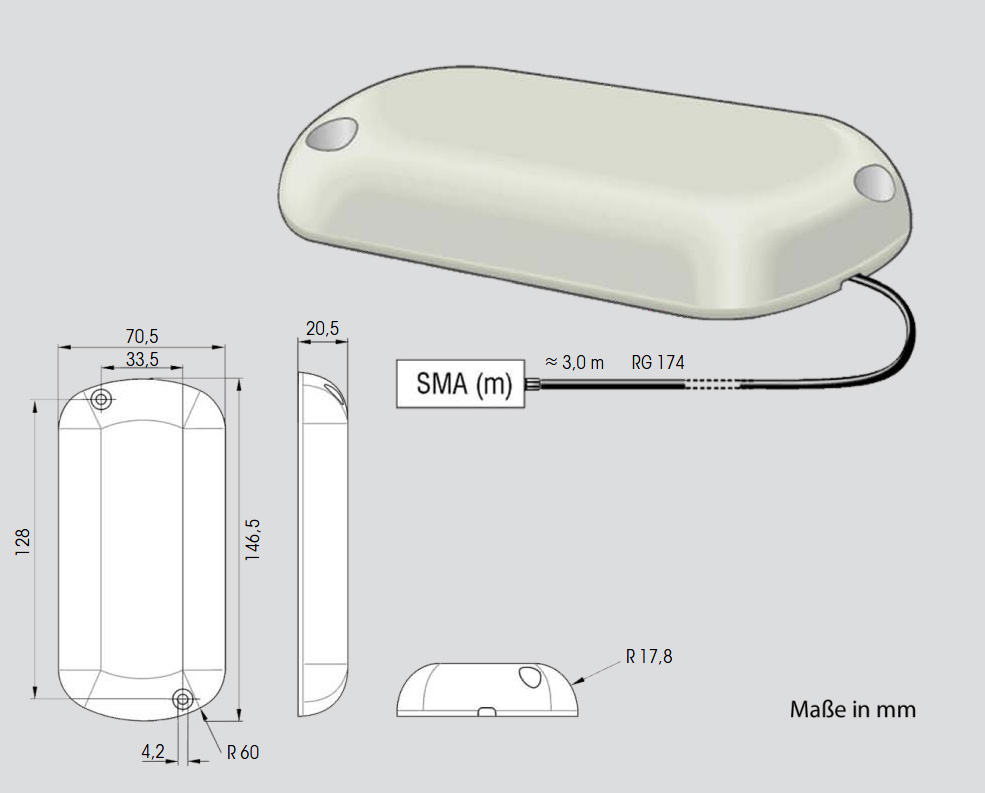

Flat Antenna

ARTICLE NUMBER

• 316206 (3m cable, FME (f) connector)
• 316220 (3m cable, SMA (m) connector)

BENEFITS

• Suitable for Multi Band Radio network
• Requires no ground plane; Installation by screws or adhesive fastening to plastic and metal
• Suitable for outside and indoor mounting
• Horizontal as well as vertical cable output
• Fasten to horizontal as well as vertical surfaces
• In case of vertical mounting ↓ cable exit must be down
• The radiator is protected with a plastic housing against dust and wetness, protection class IP 64
• The inflammability of the plastic housing corresponds to classification UL 94 V2
• Temperature range -40 ºC to +85ºC
• The plastic housing is light grey (RAL 7035)
• The RF cable is connected fixed to antenna

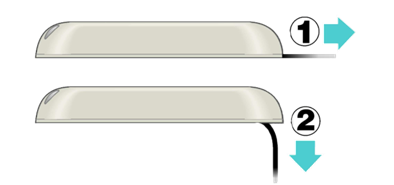

CABLE ROUTE
